Mineral Specimen Photography

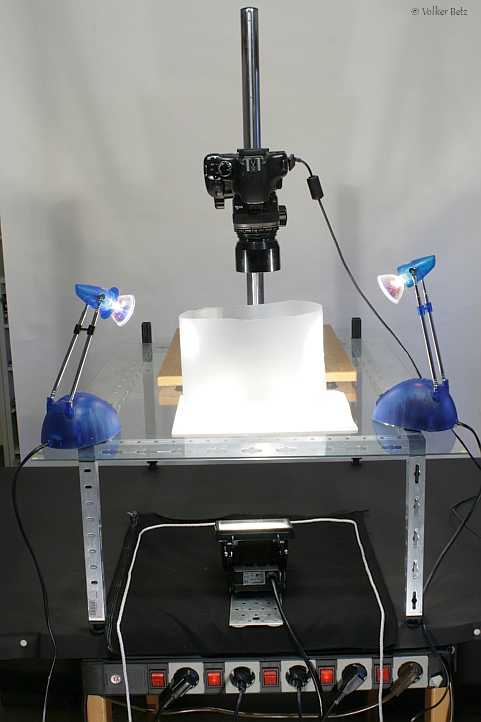

Vertical view - white acryl glass background with diffusor screen and spot lights


For white background a sheet  of white acryl glass is used and backlighted.  Spot lights in position
Picture 6














Specimen is illuminated with 20 W spots. In most cases 3-6 spots are used


Additional white acryl-glass plate for white background. Specimen in position direct on background. Tube like diffusor screen to avoid shadows and to harsh reflections.




Without a backlight (150 W halogen lamp) the white background will be gray.


Backlight in Position.




Picture 6:  This setup is used for white background.
